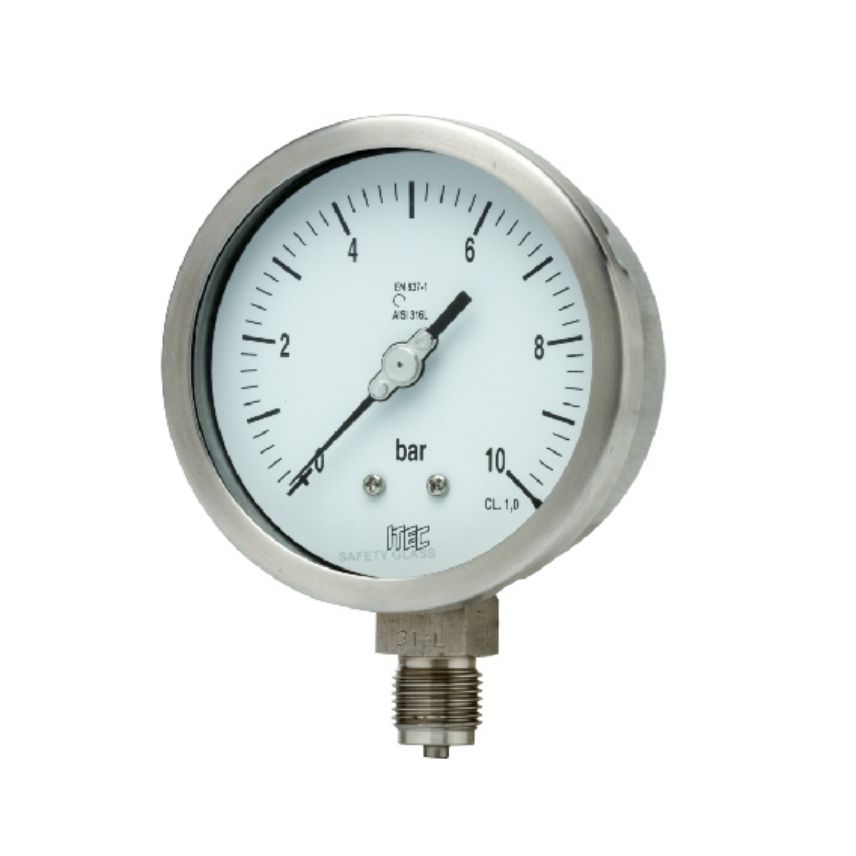

ITEC P101
Size: 100 mm ,125 mm,150 mm
Accuracy: 1,0% – EN837-1 (0,6% option)
Process connection material: 316L Stainless steel (Monel option)
Process connection location: Lower, lower back
Process connection size: ¼ NPT M, ½ NPT M, G ¼ NPT M, G ½ NPT M
Mounting: Flush, stem, surface, 2″ pipe
Element material: 316L Stainless steel (Monel option)
Movement: Stainless steel
Case/Ring: SS304 std. (SS316 option)
Case style: Open front, blow out back
Pointer: Adjustable
Pressure ranges: -1/0 to 2100 bar
Weather protection: IP67
Window: Safety glass
Dampening: Liquid fill (option)
Application:
– Liquid & gaseous mediums
– Corrosive environments
– Oil & Gas applications
– Chemical & Petrochemical
– Food & Beverages
– Nuclear power plants
Features:
– All SS measuring system
– Socket-case, direct welded
– Dry/liquid filled
– CE marking
Datasheet
Ready to find out more?
Drop us a line today for a free quote!

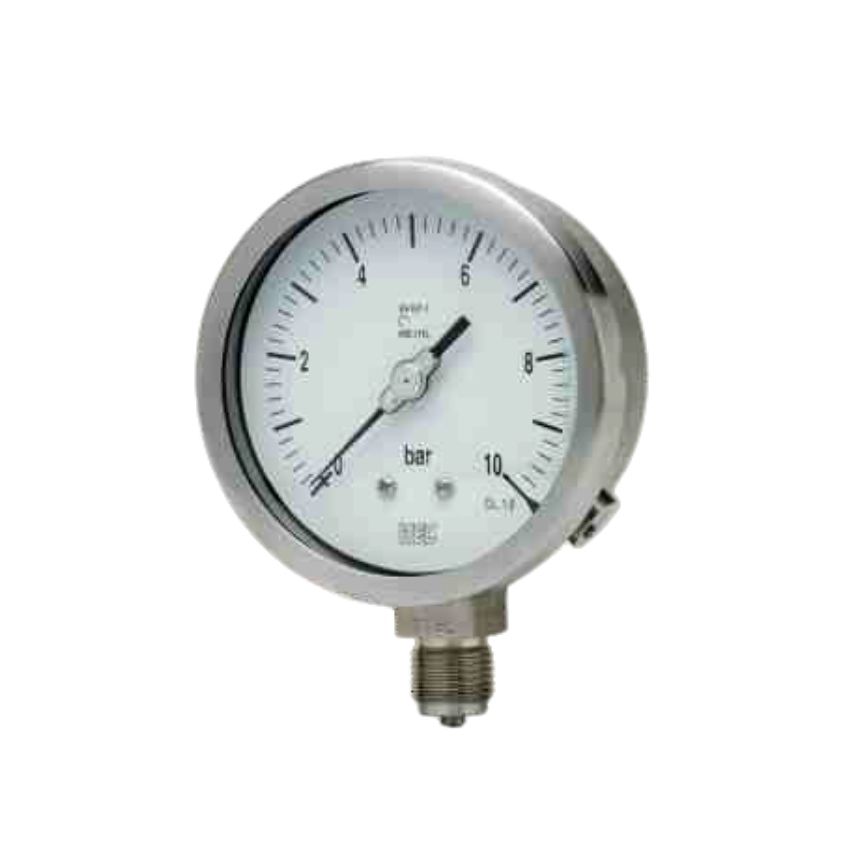

ITEC P102
Size: 100 mm ,125 mm,150 mm
Accuracy: 1,0% – EN837-1 (0,6% option)
Process connection material: 316L Stainless steel (Monel option)
Process connection location: Lower, lower back
Process connection size: ¼ NPT M, ½ NPT M, G ¼ NPT M, G ½ NPT M
Mounting: Flush, stem, surface, 2″ pipe
Element material: 316L Stainless steel (Monel option)
Movement: Stainless steel
Case/Ring: SS304 std. (SS316 option)
Case style: Open front, blow out back
Pointer: External zero adjustment
Pressure ranges: -1/0 to 2100 bar
Weather protection: IP67
Window: Safety glass
Dampening: Liquid fill (option)
Application:
– Liquid & gaseous mediums
– Corrosive environments
– Oil & Gas applications
– Chemical & Petrochemical
– Food & Beverages
– Nuclear power plants
Features:
– All SS measuring system
– Socket-case, direct welded
– Dry/liquid filled
– CE marking / ATEX
– External zero adjustment
Datasheet
Ready to find out more?
Drop us a line today for a free quote!

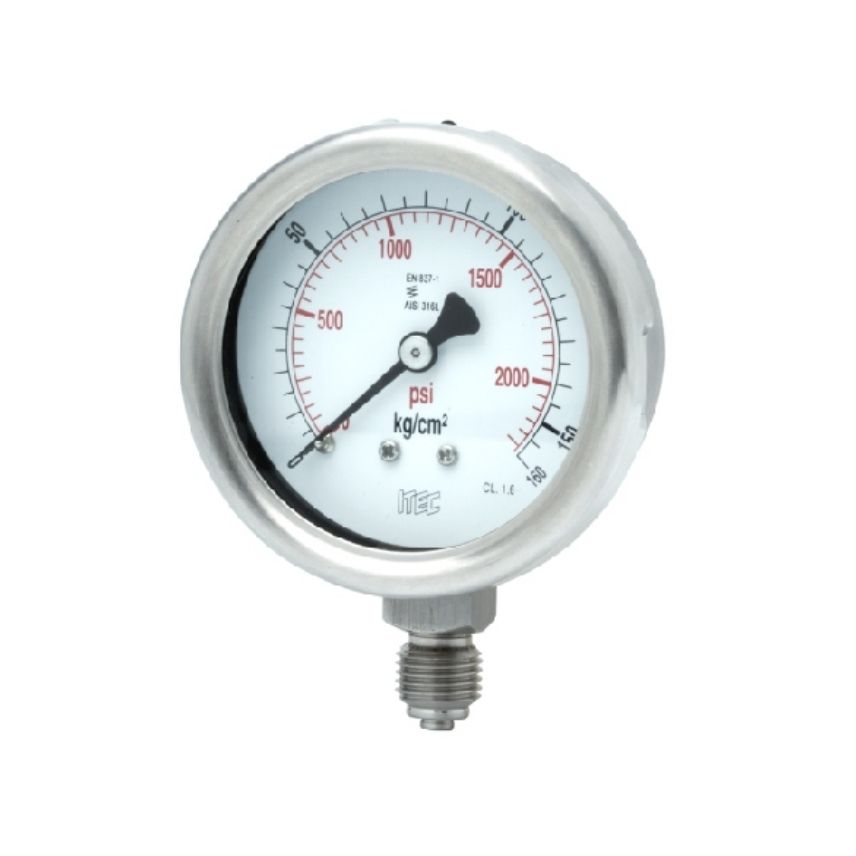

ITEC P103
Size: 50 mm, 63 mm, 80 mm, 100 mm
Accuracy: 1,6% – EN837-1
Process connection material: 316L Stainless steel
Process connection location: Lower, lower back, center back
Process connection size: ¼” NPT M, ½” NPT M, ¼” BSP M, ½” BSP M
Mounting: Flush, stem, surface
Element material: 316L Stainless steel
Movement: Stainless steel
Case/Ring: SS304
Pressure ranges: -1/0 to 1000 bar
Weather protection: IP54 / IP65
Dampening: Liquid fill (option)
Application:
• Food & Beverages
• Chemical & Petrochemical
• Corrosive environments
• Liquid & gaseous mediums
Features:
• All SS measuring system
• Socket-case, direct welded
• Dry / liquid filled
Datasheet
