Flanged Level Switches

Flanged Level Switches

Models: 100 Series, 741 – 743, 801, 802
Ranges: vac to 3500 psi, vac to 241 bar; -65° to 1200°F, -54° to 649°C
Certifications: Unit: ATEX, CRN, CSA, KOSHA, RTN, SIL, TestSafe (SAA), UL
Warranty: 5 Years

SOR flanged chamber level switches are designed for chamber serviceability. This allows for ease of cleaning, inspecting the chamber or replacing a part without having to purchase an entire new level switch unit. Customers repeatedly tell us that they prefer SOR flanged level switches because they can replace the internal components for decades before the chamber wears out.

  • Serviceable flanged chamber
  • Pressure from vacuum to 3000 psi, temperature from -65°F to 1200°F
  • Stainless steel switching mechanism for harsh atmospheres
  • Constructed to ANSI/ASME industry standards
  • All ASTM materials construction

Datasheet

Ready to find out more?

Drop us a line today for a free quote!

Sealed Level Switches

Sealed Level Switches
Flanged Level Switches
Chambered Level Switches

Models: 200 Series, 2210, 740, 803 and 804
Ranges: vac to 3000 psi (207 bar) -65° to 1200°F (649°C)
Certifications: Unit: ATEX, CRN, CSA (US and Canada), KOSHA, RTN, SIL, TestSafe (SAA), UL
Warranty: 5 Years

SOR sealed chamber level detectors are an economical alternative to our flanged models. They are specifically designed for versatility of application and a long working life. These chamber level detectors can handle higher pressures and temperatures than our serviceable models. All of these non-serviceable units are designed to ASME B31.3 (petrochemical) and B31.1 (power generation) guidelines.

  • Low-cost sealed chamber
  • Pressure from vacuum to 3500 psi, temperature from -65°F to 1200°F
  • Stainless steel detecting mechanism for harsh atmospheres
  • Constructed to ANSI/ASME industry standards
  • All ASTM materials construction

Introducing 2210

The 2210 is a horizontally mounted, float-operated level switch suitable for plant and OEM applications where open or closed contacts are required to signal presence or absence of liquid at a discrete level. But the 2210 is so much more than that.

We wanted to eliminate the confusion inherent in selecting the correct level switch by making the 2210 with the widest process specifications of any other chambered level product. Second, we listened to overwhelming customer input to make the 2210 as compact as possible. The result is a standard product that is rated for process temperatures up to 750°F (399°C) and withstands pressures up to 1799 psi (124 bar) all in a package that is less than half the size of our model 208.

The 2210 also features our unique NEMA 4X “Quick-Release” cover for ease of maintenance under any temperature condition. The unique thread engagement on the 2210 has been specifically engineered to be removable and reattached at any temperature virtually eliminating this long-standing issue.

  • Field proven reliability
  • Smaller size and weight than other chambered level switches
  • One product for most process conditions
  • CSA (US and Canada) (General Purpose) and SIL approvals on all units
  • “Quick Release” housing cover

Datasheet

Ready to find out more?

Drop us a line today for a free quote!

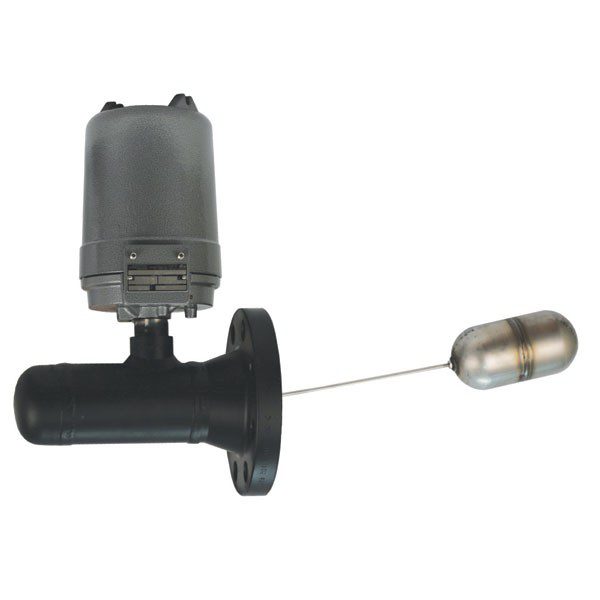

Side Mounted Level Switches

Side Mounted Level Switches

Models: 400 Series
Ranges: vac to 1250 psi, vac to 95 bar; -65° to 800°F, -54° to 427°C
Certifications: Unit: ATEX, CRN, CSA, KOSHA, RTN, SIL, TestSafe (SAA), ULL
Warranty: 5Years

The versatile SOR 400 Series line of side mounted level switches is available with flanged or NPT threaded connections. The chamber mounts directly to the tank without a bridle and the float extends into the tank for accurate operation. 400 Series units are serviceable and perform well in harsh environments.

  • Serviceable flanged or NPT connection
  • Pressure from vacuum to 1250 psi, temperature from -65°F to 450°F
  • Stainless steel switching mechanism for harsh atmospheres
  • All ASTM material construction
  • Designed to ASME B31.1 or B31.3 guidelines

Datasheet

Ready to find out more?

Drop us a line today for a free quote!

Side Mounted Level Switches

Side Mounted Level Switches

Models: 108, 208
Ranges: vac to 5000 psi, vac to 345 bar; -65° to 1200°F, -54° to 649°C
Certifications: Unit: ATEX, CRN, CSA, KOSHA, RTN, SIL, TestSafe (SAA), UL
Warranty: 5Years

SOR steam trap level switches offer heavy construction for versatility of application and are available with flanged or sealed chambers. The 108 model is serviceable for ease of inspection, clean out or parts replacement. The 208 is sealed to perform under higher pressures and temperatures.

We will do what many other manufacturers avoid. While some of our competitors offer some customization, SOR will tackle almost any challenge. Each stream trap level switch can be engineered to your specific requirements.

  • Serviceable flanged or sealed chamber
  • Pressure from vacuum to 5000 psi, temperature from -65°F to 1200°F
  • Stainless steel switching mechanism for harsh atmospheres
  • Designed to ASME B31.1 or B31.3 guidelines
  • All ASTM materials constructio

Datasheet

Ready to find out more?

Drop us a line today for a free quote!

SOR chambered level switches are high-quality, rugged, industrial products specifically designed for versatility of application. The chambered level switch is float operated with a sealed or a serviceable flanged chamber. Options include: type and number of switches, housing type, chamber material, process connections and accessories.



Dependability you can count on

  • Carbon or stainless steel construction
  • Welded chambers designed to ASME B31.1 and B31.3 guidelines
  • Stainless steel switching mechanism for harsh atmospheres
  • ASTM materials

Engineered to your specifications

  • Variety of models and connections to choose from
  • Exotic chamber and trim materials available
  • Pressure from vacuum to 5000 psi, temperature from -40°F to 1200°F
  • Every SOR chambered level switch can be designed to your exact specifications – talk to your factory Sales Engineer or local Representative

Product support

  • Full-time engineering staff dedicated to helping you solve your mechanical level switch challenges

Simple to use

  • Easy to install
  • Accessible internal components with flanged chamber models
